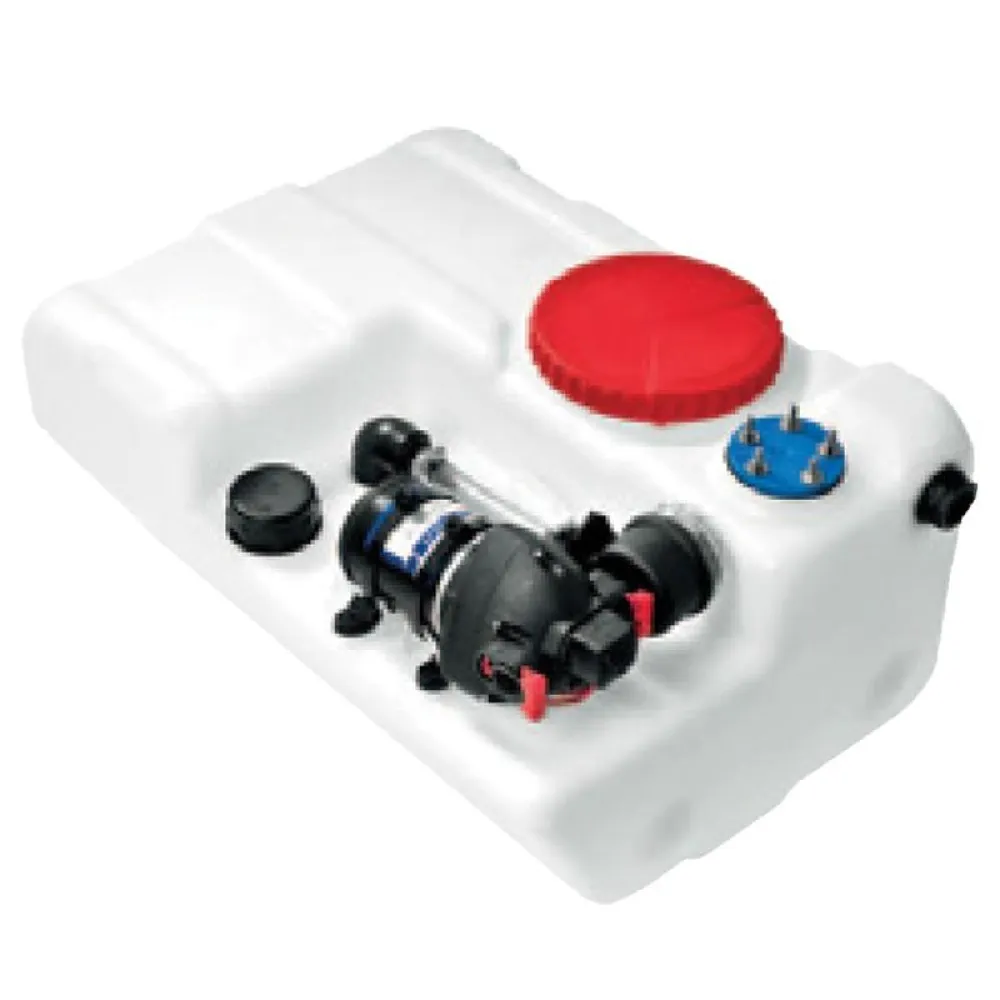

NUOVA RADE Bora With Pump

Horizontal model made from odour-free PE HD. Available in 4 sizes

Features:

– Holding base tank alone.
– Complete set including a holding tank, a diaphragm pump (12V or 24V), a sensor, and fittings. Accessories available : pump, sensor, vented loop, valve, filter, deck filler.

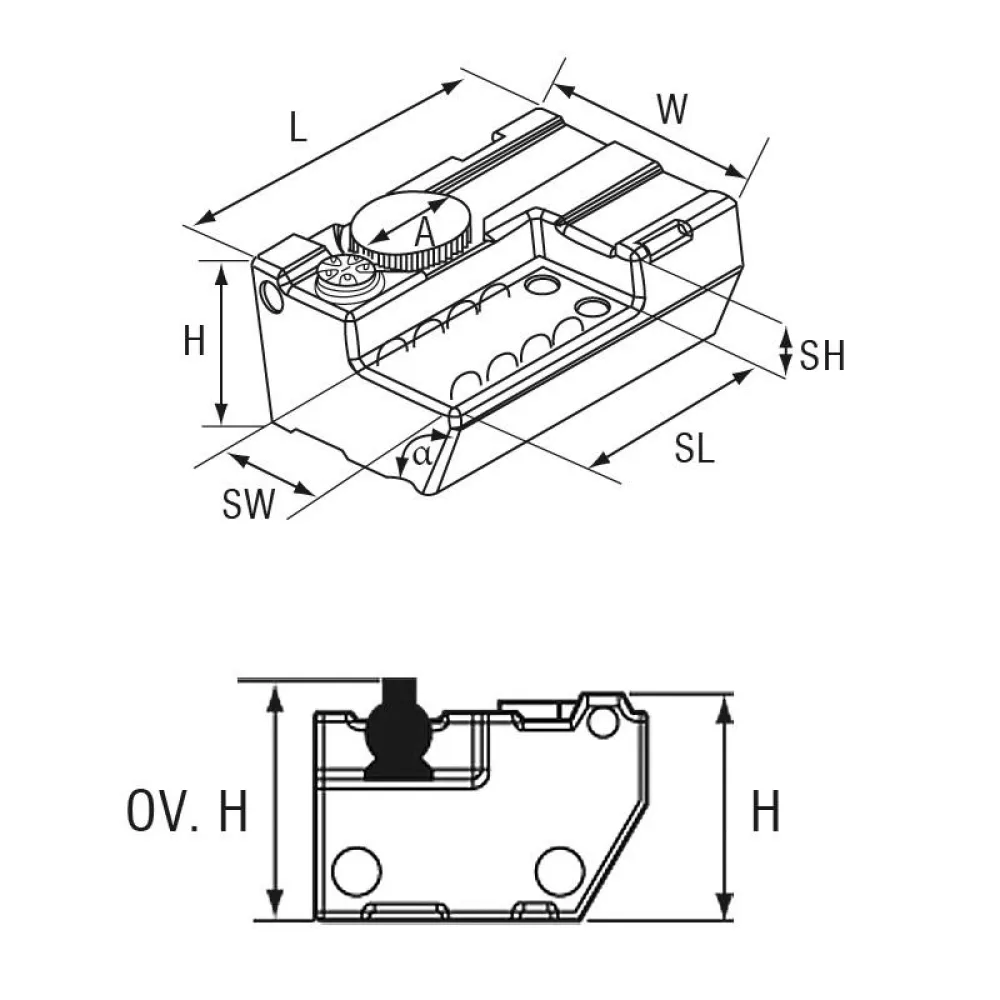

Specifications:

– Capacity (lt): 100
– Length (mm): 1245
– Width (mm): 400
– Height (mm): 270
– H1 (mm): 280
– SL (mm): 350
– SW (mm): 200
– SH (mm): 80
– A(mm): 133,5
– α Angle: 120°
