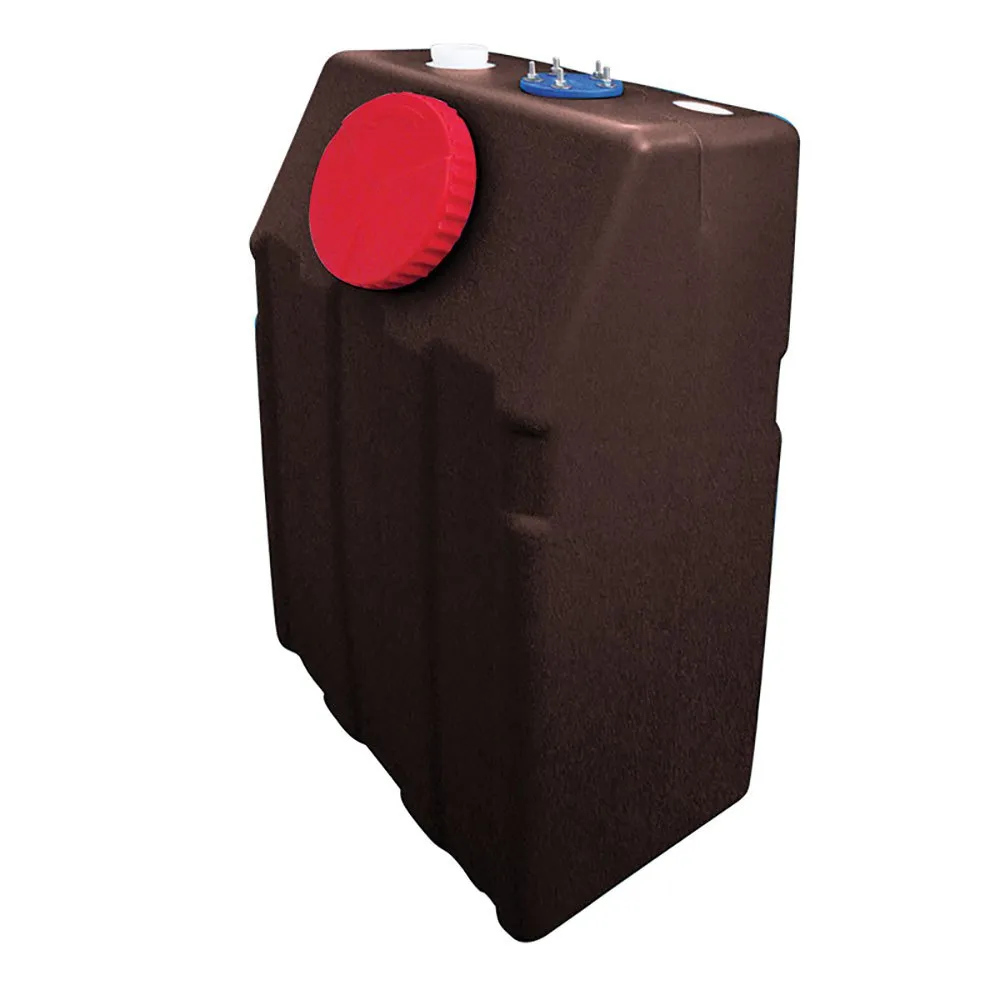

NUOVA RADE Zefiro Waste Water Tank 60L

Vertical model made from odour-free high-density polyethylene (HDPE). Gravity discharge : when installation is carried out at more than 0.5 m above the waterline, the tank can be emptied without pump. Can be mounted on a bulkhead. Accessories available : sensor, gauge, vented loop, valve, filter, deck filler,pump.

Features:

– Shaped for an effective discharge
– 1 inlet and 2 outlets 38 mm – G 1 1/2”
– 1 vent 25 mm – G 3/4”
– 1 inspection hatch: 127 mm
– Plate compatible with VDO standard sensors
– Compatible with diaphragm pumps and macerators (12 or 24V)

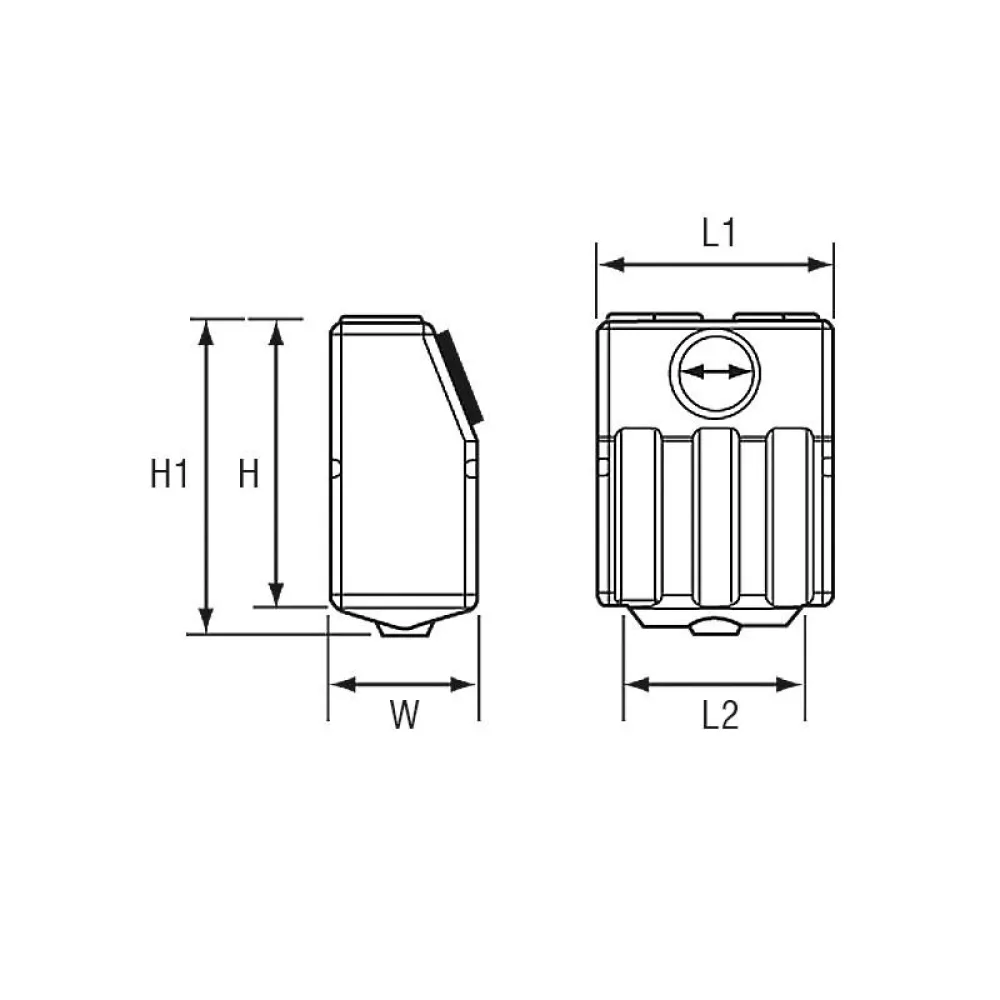

Specifications:

– Capacity (lt): 60
– L1(mm): 400
– L2(mm): 302
– W(mm): 250
– H(mm): 703,7
– H1(mm): 750,3
– A(mm): 133,5
